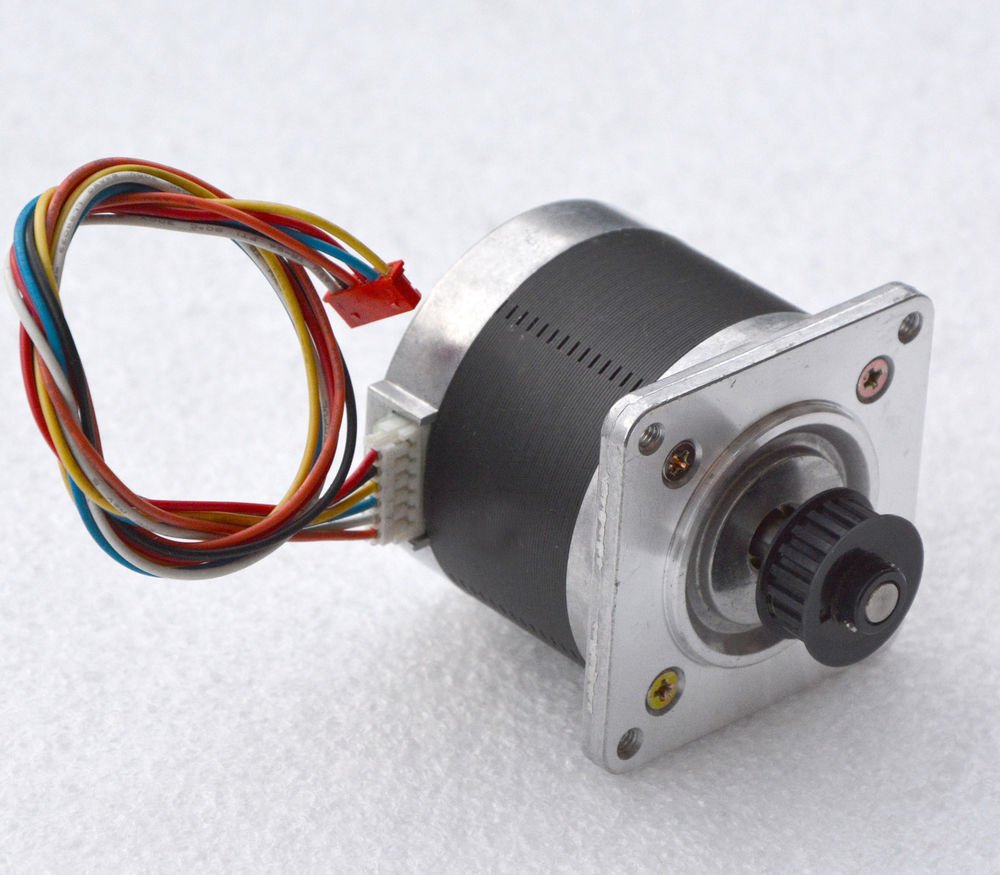

STEPPING MOTOR TYPE 23LM-C355-P6V

BIPOLAR

RATED CURRENT/WDG 1,5 Amps

WINDING RESISTANCE 2,2 Ohms

HOLDING TORQUE Nm (Kg-Cm) 0,614 (6,2)

INDUCTANCE 5,5 mH

ROTOR INERTIA 0,110 Kg-Cm2

DETENT TORQUE Nm (g-Cm) 0,0540 (550)

WEIGHT 450 grs.

2.1 V

COIL 1.4 Ohms

1.8 Deg/Step

0,6nM tork

4 kablolu bipolar motor

1,5Amper/faz

2,2ohm/faz
