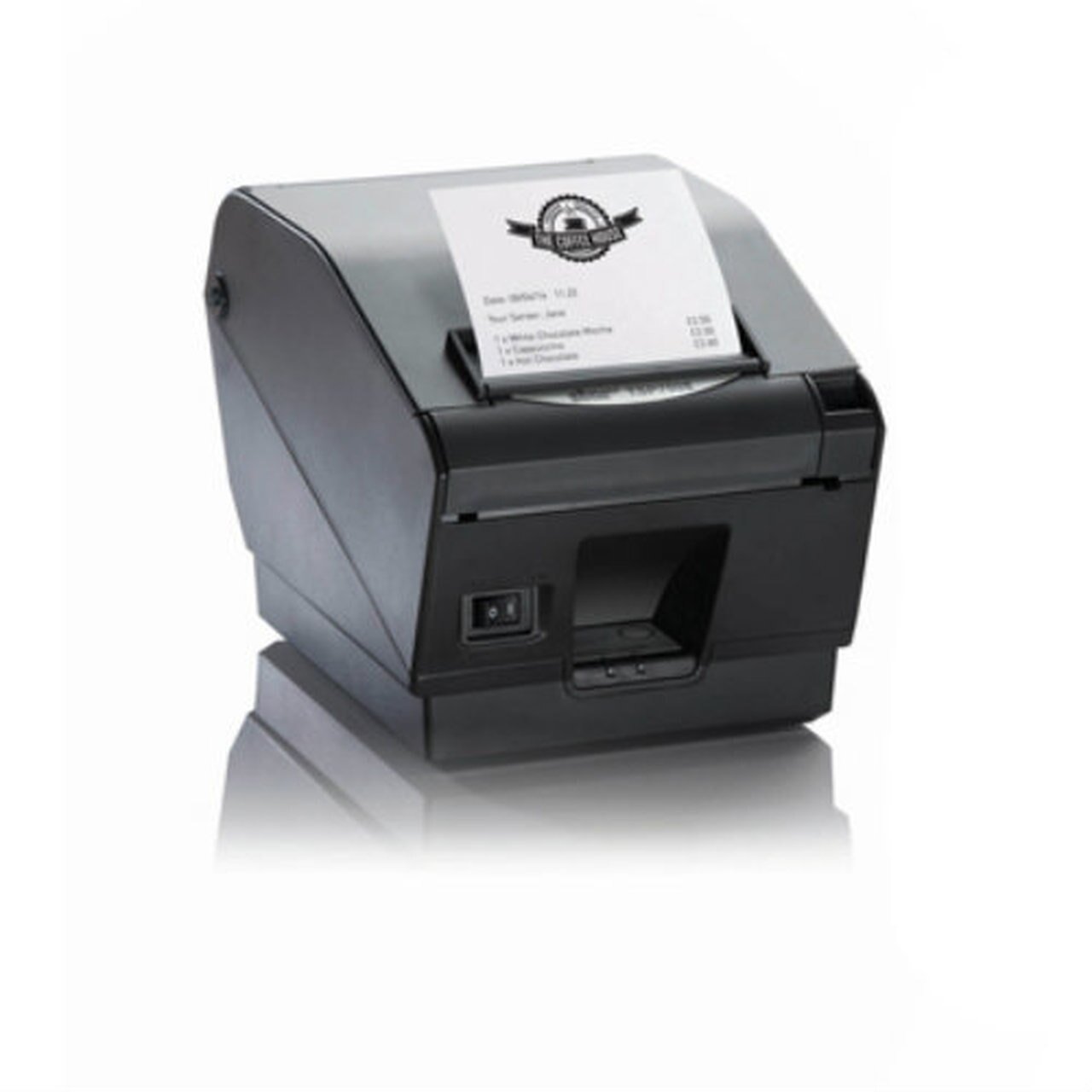

Star TSP700 Thermal Printer

 Star TSP700 Thermal Printer

Ürün tarafımızdan 3 ay garantili olup 4x4 lük sorunsuz çalışmaktadır.Windows xp,7,8 ve 10 da sorunsuzca çalışmaktadır.

Paket içeriğinde yazıcı , lpt-usb bağlantı kablosu , 3 pinli adaptör ve driver cdsi bulunmaktadır.

Printer MethodDirect Thermal Line PrintingPrint Speedup to 250mm/secondReceipt Per Minute throughput speedUp to 53 receipts per minute
(standard 20 line receipt)Print Resolution
(vertical x horizontal)203 x 203 dpi, 406 x 203 dpiPrint Density7 step selection by memory switch or control commandCharacter Matrix12 x 24 dots, 9 x 24 dotsTwo Colour Print CapabilityRed, Blue and Black
(special paper required)No. of Columns48 / 64 or 53 / 71
(depends on Paper Width)
incl. 1st column print for lottery applicationsCharacter SetANK 95, 32 Int 128 GraphicInternational Code PagesStar Mode = 40. ESC/POS= 6 & 1 Blank allowing an additional character page to be addedBarcodes9 versions / PDF 417, QR
(Maxicode Option Pending)Line Spacing3mm or 4mm + ProgrammablePaper Feed Speedup to 250mm/sec.Paper Specifications:Width80mm standard. 82.5 & 58mm also available by simply moving installed paper guideWeight0.065 ~ 0.15mm / 63 ~ 150gsmRoll Diameter100mmEasy-Load"Drop-In & Print"Paper End / Black Mark SensorStandardNear End SensorTwo sensors for horizontal and vertical useMaximum Print Width80mm paper = 72mm, 82.5 paper = 80mm,
58 paper = 52mmTop Margin13mm default (3mm selectable via Memory Switch)External Straight Paper Feed PathStandardAutocutter (guillotine)Full or Partial cut selectable
(centre cut)Logo Store2 Mbit Flash ROMs with graphic management softwareFlash ROM16MbitsInterface versionsSerial, Parallel, USB, Ethernet, BluetoothEmulationStar Line Mode & ESC/POS^TMPeripheral Drive Circuit2 circuits, (24V max. 1A) 1 Compulsion inputPower ConsumptionOperating / Waiting - Average 1.8 / 0.15AOperating Conditions:Temperature5°C to 45°CHumidity10% ~ 90% RH (without condensation)Storage Conditions:Temperature-20 to 60°CHumidity10% ~ 90% RHDimensions (without interface cover)147 (w) x 213 (d) x 148 (h) mm / 1.75 KgSafety StandardsUL, C-UL, TÜV, FCC, VCCI, EN55032, CE, GostReliabilityPrinter60 million lines (MCBF)Autocutter2 million cutsOptionsSplash Proof cover
Parallel, Serial, Ethernet, USB Interface
Wall & Vertical Mount Kits
(Basic wall mount kit supplied with printer)
Buzzer
