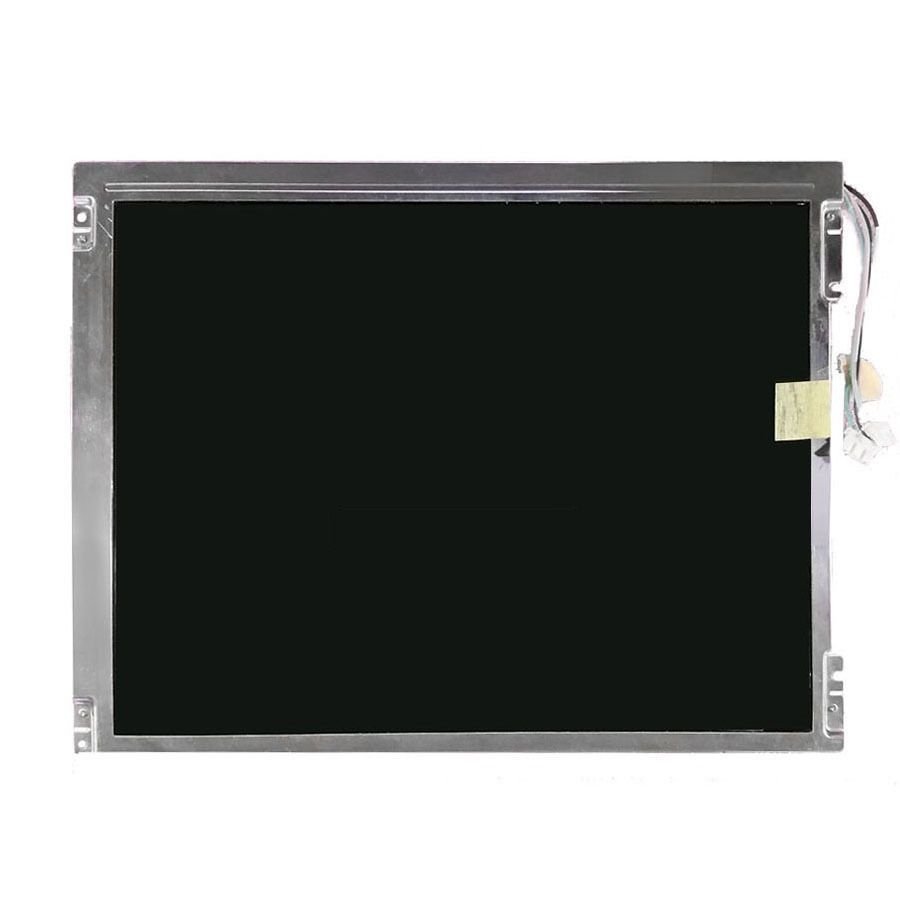

SHARP 12.1'' LQ121S1LG61 LCD PANEL
Active Area (W x H):
246.0 x 184.5 mm
Backlight System:
2 x CCFT
Brightness:
450 nits
Contrast Ratio:
600:1
Description:
LCD Displays
Diagonal Size:
12.1 inch (31.0 cm)
Display Mode:
Normally White
Family:
LQ121S1LG61
Interface:
LVDS: 262,144 colors
Operating Temperature Range:
-30°C to +80°C
Outline Dimensions (W x H x D):
276.0 x 209.0 x 11.0 mm
Pixel Format:
800 x 600
Replacement Parts:
LQ121S1LG84
Response Time:
35 ms
RoHS:
Yes
Status:
Discontinued
Storage Temperature Range:
-30°C to +80°C
Type:
SVGA Strong 2
Viewing Angle - 12 o clock:
50 °
Viewing Angle - 6 o clock:
60 °
Viewing Angle - side to side:
140 °
| Ekran Boyutu | : | 12.1'' |
