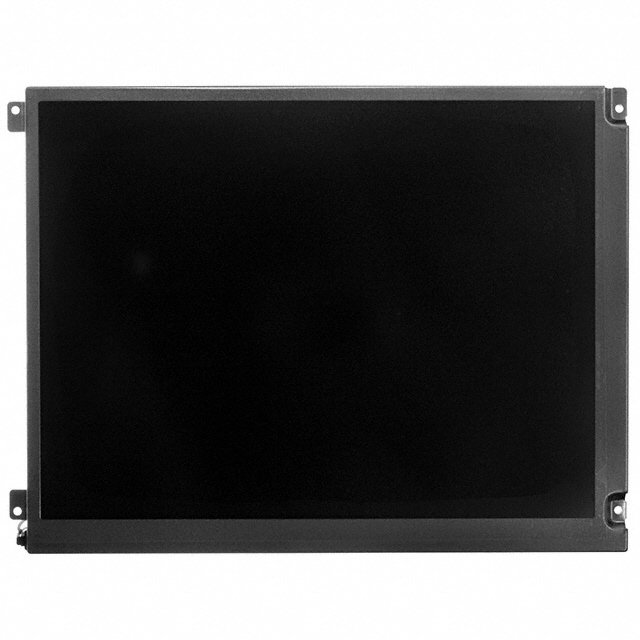

Optrex 12.1'' T-51866D121J-FW-A-AA 800*600 LCD PANEL

Optrex 12.1'' T-51866D121J-FW-A-AA 800*600 LCD PANEL

Diagonal Size

12.1 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

800(RGB)×600   [SVGA]

Configuration

RGB Vertical Stripe

Active Area

246(H)×184.5(V) mm

Outline Dim.

280(H)×210(V) ×12.5(D) mm

Bezel Area

249.0(H)×187.5(V) mm

Treatment

Hard coating (2H), Antireflection

Luminance

400 cd/m² (Typ.)

Contrast Ratio

600:1 (Typ.) (TM)

View Direction

6 o'clock

Response Time

6/19 (Typ.)(Tr/Td)

Viewing Angle

60/60/45/75 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Support Color

262K/16.7M

Light Source

CCFL  [2 pcs] , 50K hours , W/O Driver

Weight

720g (Typ.)

Designed For

Frame Rate

60Hz

Touch Panel

Without

Interface Type

20 pins   LVDS (1 ch, 6/8-bit) , Connector

Power Supply

3.3V (Typ.)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
