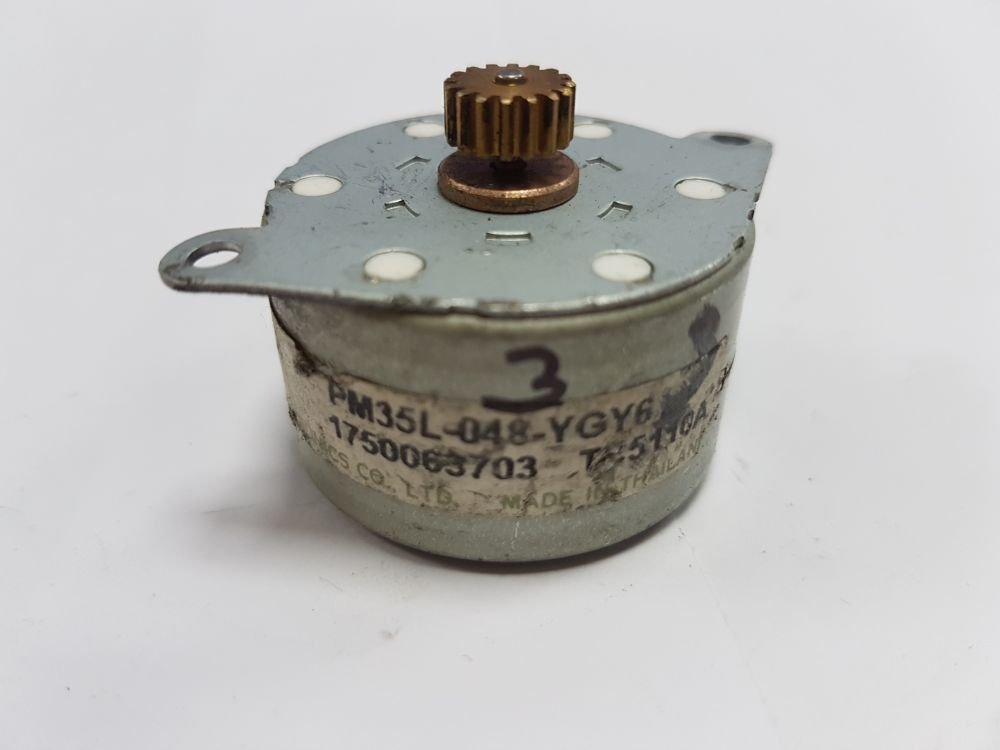

NMB PM35L-048-YGY6 Motor Stepper
Motor Size
PM35L-048
Number of Steps per Rotation
48 (7.5deg/Step)
Drive Method
2-2 PHASE
Drive Circuit
UNIPOLAR CONST. VOLT.
BIPOLAR CHOPPER
Drive Voltage
24[V]
24[V]
Current/Phase
500[mA]
Coil Resistance/Phase
30[ohms]
5.5[ohms]
Drive IC
2SC3346
UDN2916B-V
Magnet Material
Ferrite plastic magnet(MSPL)
Polar anisotropy ferrite sintered magnet(MS50)
Nd-Fe-B bonded magnet(MS70)
Insulation Resistance
100M[ohms]MIN
Dielectric Strength
AC 500[V]1[min]
Class of Insulation
CLASS E
Operating Temp.
-10[deg.C] - 50[deg.C]
Storage Temp.
-30[deg.C] - 80[deg.C]
Operating Hum.
20[%]RH - 90[%]RH
| Motor Size | PM35L-048 | |
|---|---|---|
| Number of Steps per Rotation | 48 (7.5deg/Step) | |
| Drive Method | 2-2 PHASE | |
| Drive Circuit | UNIPOLAR CONST. VOLT. | BIPOLAR CHOPPER |
| Drive Voltage | 24[V] | 24[V] |
| Current/Phase | 500[mA] | |
| Coil Resistance/Phase | 30[ohms] | 5.5[ohms] |
| Drive IC | 2SC3346 | UDN2916B-V |
| Magnet Material | Ferrite plastic magnet(MSPL) | |
| Polar anisotropy ferrite sintered magnet(MS50) | ||
| Nd-Fe-B bonded magnet(MS70) | ||
| Insulation Resistance | 100M[ohms]MIN | |
| Dielectric Strength | AC 500[V]1[min] | |
| Class of Insulation | CLASS E | |
| Operating Temp. | -10[deg.C] - 50[deg.C] | |
| Storage Temp. | -30[deg.C] - 80[deg.C] | |
| Operating Hum. | 20[%]RH - 90[%]RH | |
