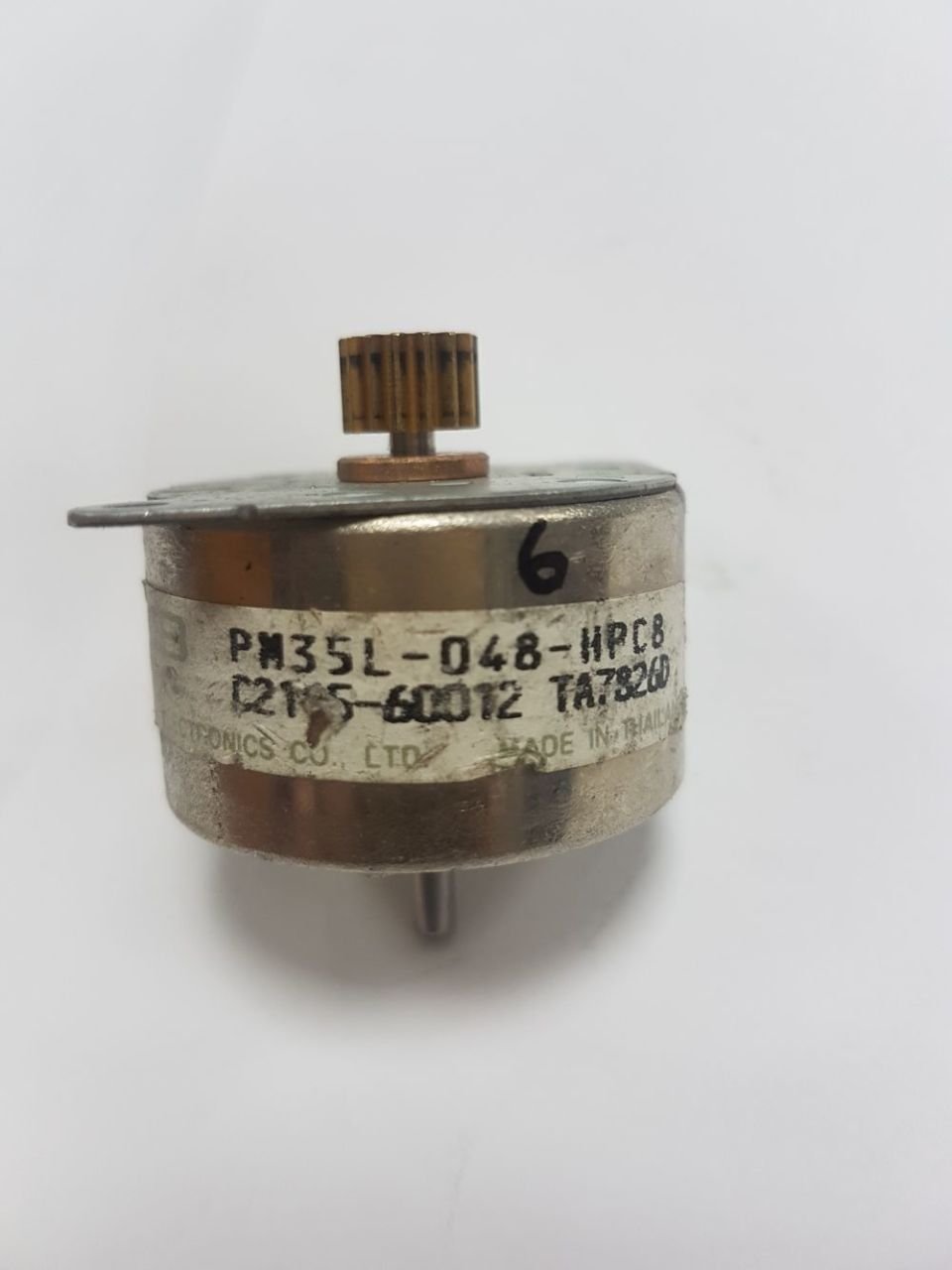

NMB PM35L-048-HPC8 Motor Stepper

Class of Insulation: Class E

Coil Resistance/Phase: 30[O]; 5.5[O]

Current/Phase: 500[mA]

Dielectric Strength: AC 500 [V] 1 [min]

Drive Circuit: Unipolar const. volt, bipolar chopper

Drive Method: 2-2 PHASE

Drive Voltage: 24 [V]

Insulation Resistance: 100M[O] MIN

Motor Size: PM35L-048

Number of Steps per Rotation: 48(7.5°/Step)

Operating Humidity: 20[%] RH ~ 90[%] RH

Operating Temperature: -10[°C] ~ 50[°C]

Storage Temperature: -30[°C] ~ 80[°C]
