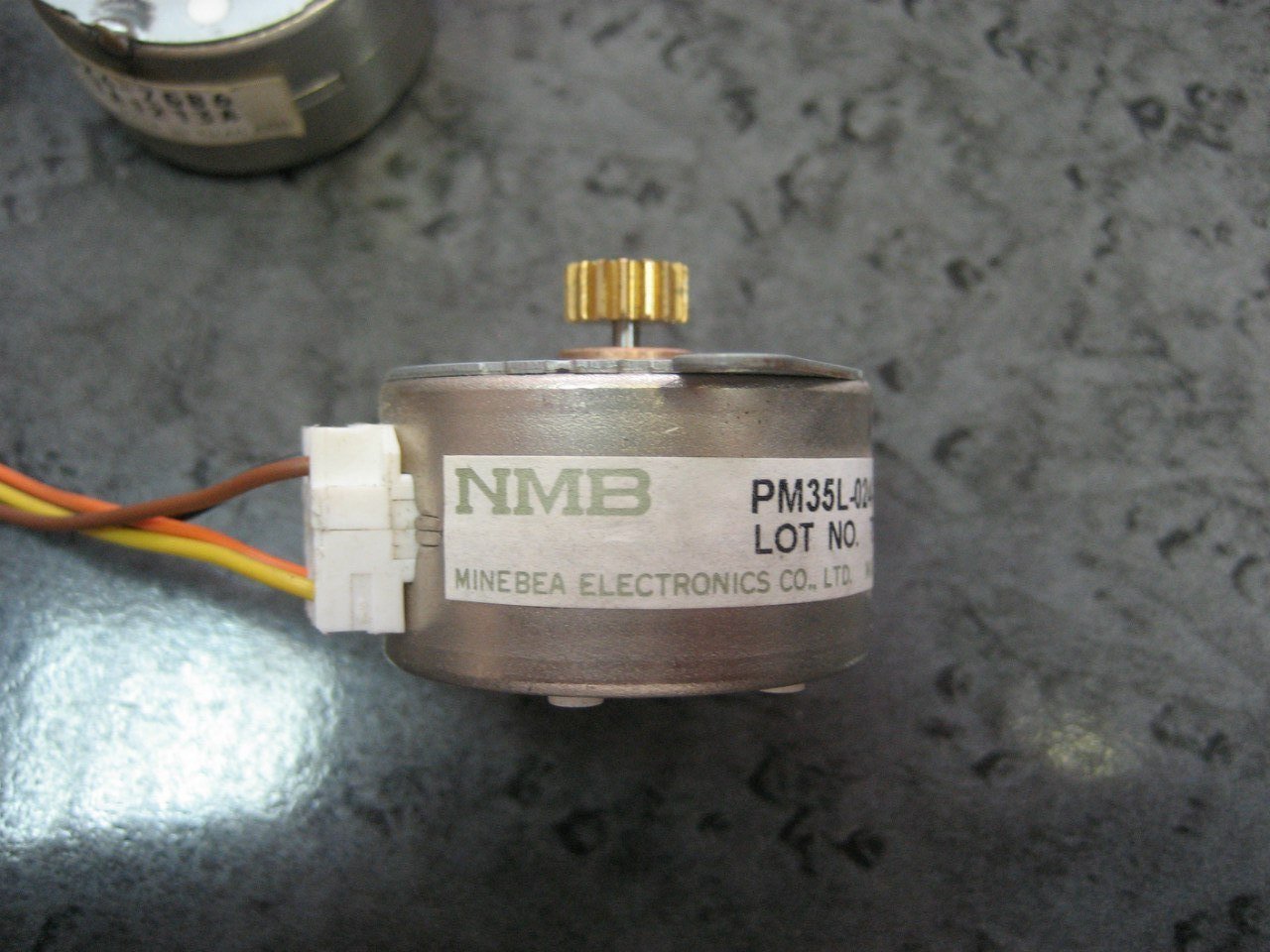

NMB-MAT PM35L-024-ZGB6 Step Motor 35mm
| Motor Size | PM35L-024 | |
|---|---|---|
| Number of Steps per Rotation | 24 (15deg/Step) | |
| Drive Method | 2-2 PHASE | |
| Drive Circuit | UNIPOLAR CONST. VOLT. | BIPOLAR CHOPPER |
| Drive Voltage | 24[V] | 24[V] |
| Current/Phase | 500[mA] | |
| Coil Resistance/Phase | 100[ohms] | 12[ohms] |
| Drive IC | 2SC3346 | UDN2916B-V |
| Magnet Material | Ferrite plastic magnet(MSPL) | |
| Polar anisotropy ferrite sintered magnet(MS50) | ||
| Nd-Fe-B bonded magnet(MS70) | ||
| Insulation Resistance | 100M[ohms]MIN | |
| Dielectric Strength | AC 500[V]1[min] | |
| Class of Insulation | CLASS E | |
| Operating Temp. | -10[deg.C] - 50[deg.C] | |
| Storage Temp. | -30[deg.C] - 80[deg.C] | |
| Operating Hum. | 20[%]RH - 90[%]RH | |
