Nema 16 Moons 16HY4401-02N Step motor
Step Angle ( 。): 1.8。
Motor Length (mm): 40 mm
Rated current (A): 0.6 A
Phase Resistance (Ω): 12 Ω
Phase Inductance (mH): 20 mH
Holding Torque (N.cm min): 24 N.cm
Detent Torque (N.cm max): 1.2 N.cm
Rotor Inertia (g.cm2): 24 g.cm2
Lead Wire N0.: 4
Motor Weight (g): 210 g

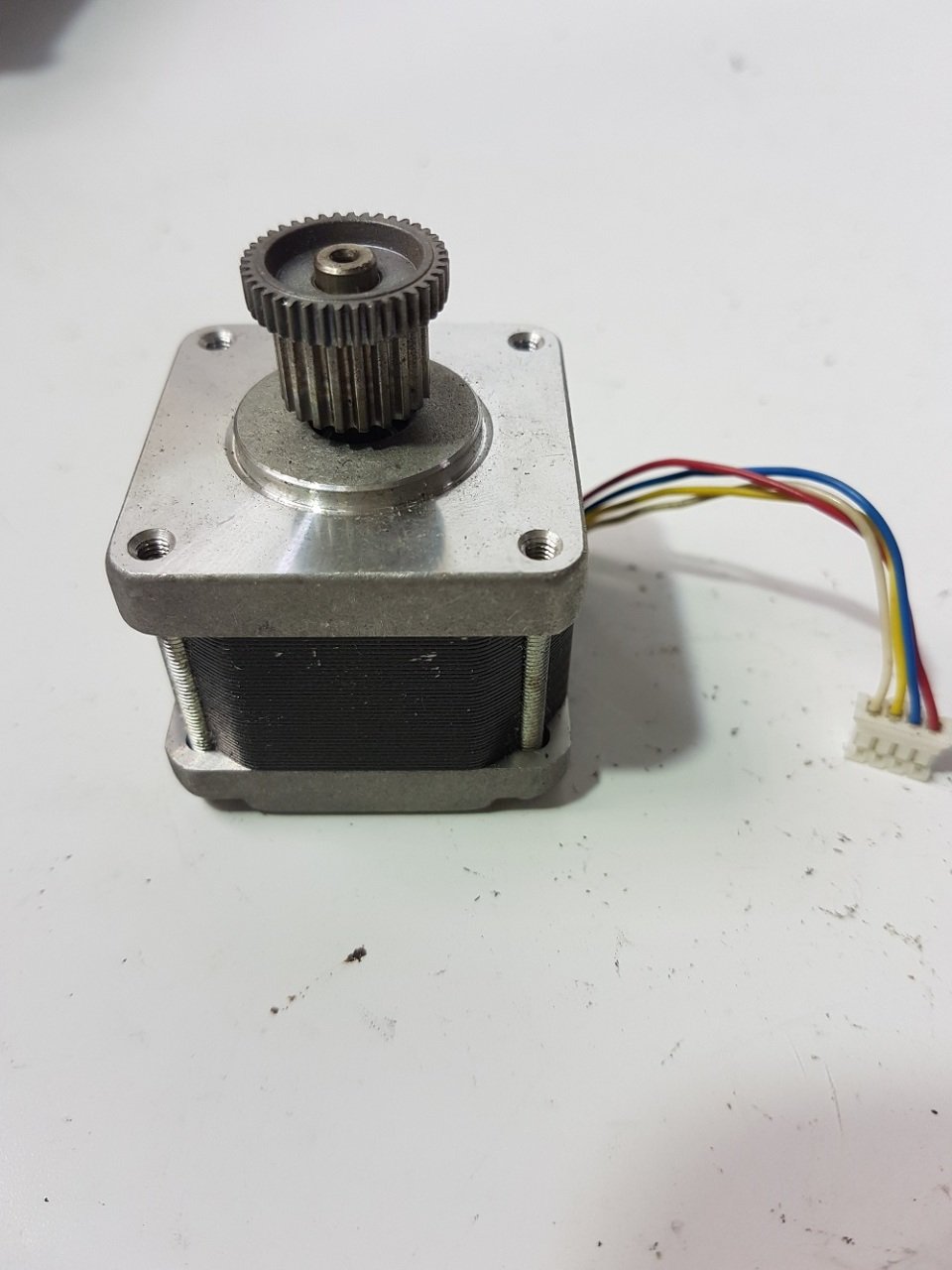

Nema 16 "MOON" stepper motor bipolar 4 wire type 16HY4401-02N
Stepping motor NEMA-16
Brand : MOON
Model : 16HY4401-02N
Electrical spec :
Step : 1.8 deg
Bipolar 4 wire
Resistansi coil 7.2 ohm
Dimension :
Mounting standard nema 16
Diameter shaft 5mm / panjang 1.5 cm
Panjang body 3.25 cm
Built in sprocket / pinion diameter 13 cm
