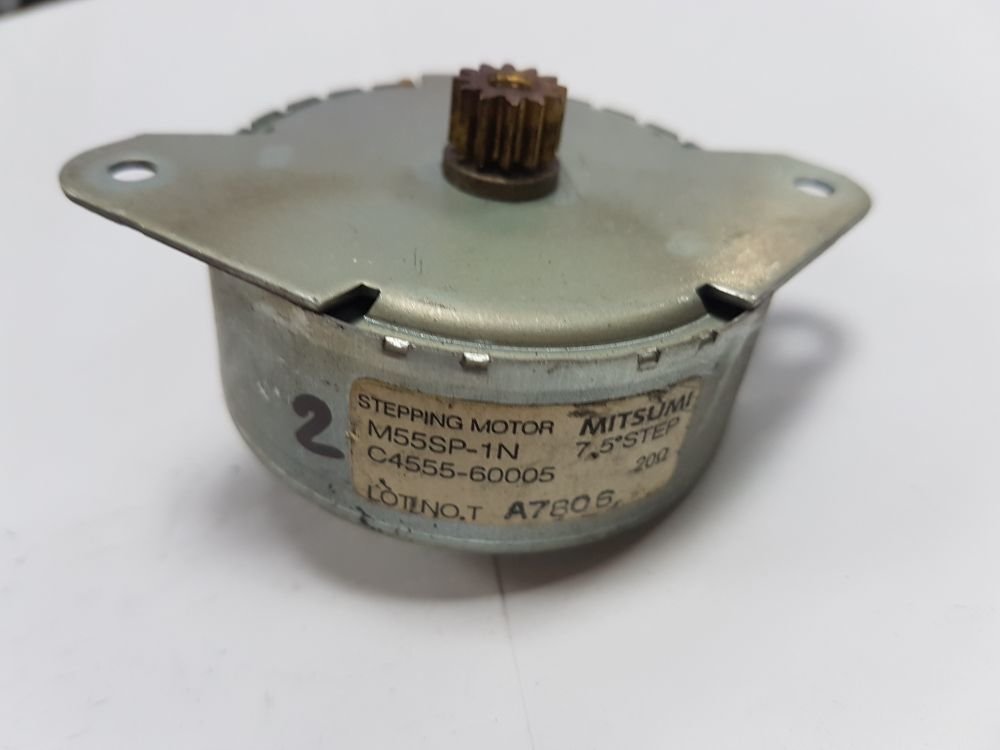

Mitsumi M55SP-1N Motor
- Coil DC Resistance: 50O/phase±7%, 120O/phase±7%
- Excitation Method: 2-2 Phase excitation (Unipolar driving)
- Holding Torque: 107.8mN·m, 127.4mN·m
- Insulation: Class Class E insulation
- Max. Pull-in Pulse Rate: 265pps, 315pps
- Max. Pull-out Pulse Rate: 270pps, 330pps
- No. of Phase: 4 Phase
- Pull-in Torque: 16.7mN·m/200pps, 43.6mN·m/200pps
- Pull-out Torque: 24.5mN·m/200pps, 48.0mN·m/200pps
- Rated Current/Phase: 259mA, 216mA
- Rated Voltage: DC 12V, DC 24V
- Step Angle: 7.5°/step, 7.5°/step
- Working Voltage: DC 10.8~13.2V, DC 21.6~26.4V
