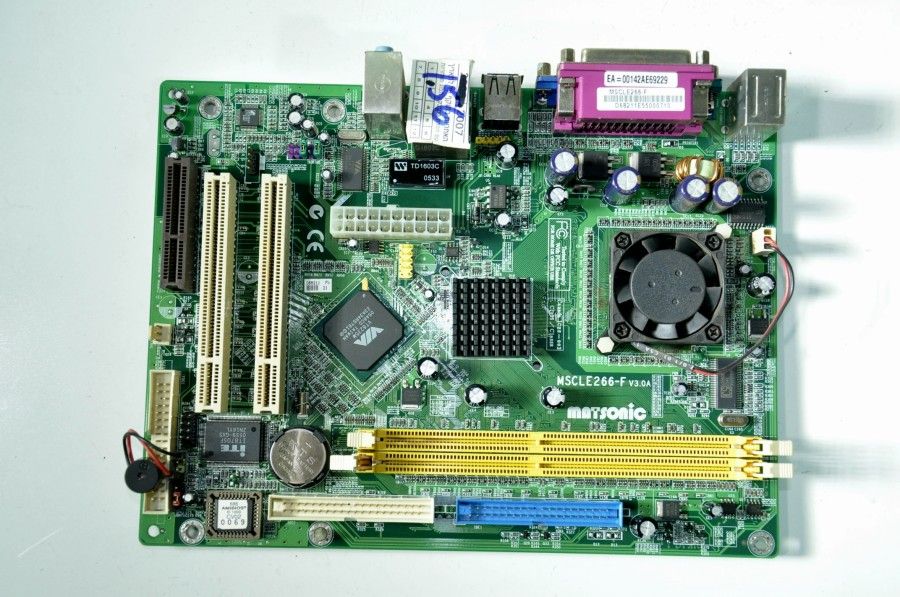

MATSONIC MSCLE266-F DDR1 CPU+ANAKART
MSCLE266-F
VIA CLE266 chipset
Socket 370 Processor Based Flex ATX Motherboard With VGA/Audio/Lan/USB 2.0 On Board
SPECIFICATION
Processor
Built-in VIA C3 2000+ CPU
Chipset
VIA CLE266 (VT8623/VT8235) two chip AGPset
Supports 66/100/133 MHz Front Side Bus
V-Link 266MB/s high bandwidth North/South Bridge interconnect
Memory
Supports two 184-pin DDR DIMM maximum size up to 2GB.
Support DIMMs of DDR200/DDR266.
Embedded 3D Ultra AGP VGA
Integrated UniChrome™ 2D/3D graphics
Shared memory architecture allows a maximum of 64 MB main memory to act as frame buffer
Embedded USB2.0
480 Mbps data capacity
Backwards compatible with USB 1.1
Compliant with Intel!|s Enhanced Host Controller Interface
Specification Revision 0.95
Embedded LAN on board
10/100Mbps Fast Ethernet LAN on board
Supports IEEE 802.3 and 802.3u standards
Fully compliant ANSI X3.263 TP-PMD physical sub-layer
Audio
AC97 Codec on board to provide software audio solution
6CH DAC, applicable for leading motherboard chipsets.
Extensive jack-detection capability
Precise and advanced impedance sensing
Support 2 stereo microphones recording and playback
Two Ultra DMA IDE Ports
Supports two IDE ports up to 4 ATAPI devices
Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 133MBps with bus mastering
Bus Architecture
One CNR (Communication Network Riser)
Two PCI 2.2 32-bit Master PCI Bus slots
I/O Interface
PS/2 Mini-DIN mouse & keyboard ports
Six USB ports (four backpanel ports, onboard USB headers providing two extra ports)
One 25-pin female printer port
One serial port
One VGA port
Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK
Form Factor
Four layers, 23.0 cm x 17.0 cm
Flex ATX form factor
VIA CLE266 chipset
Socket 370 Processor Based Flex ATX Motherboard With VGA/Audio/Lan/USB 2.0 On Board
SPECIFICATION
Processor
Built-in VIA C3 2000+ CPU
Chipset
VIA CLE266 (VT8623/VT8235) two chip AGPset
Supports 66/100/133 MHz Front Side Bus
V-Link 266MB/s high bandwidth North/South Bridge interconnect
Memory
Supports two 184-pin DDR DIMM maximum size up to 2GB.
Support DIMMs of DDR200/DDR266.
Embedded 3D Ultra AGP VGA
Integrated UniChrome™ 2D/3D graphics
Shared memory architecture allows a maximum of 64 MB main memory to act as frame buffer
Embedded USB2.0
480 Mbps data capacity
Backwards compatible with USB 1.1
Compliant with Intel!|s Enhanced Host Controller Interface
Specification Revision 0.95
Embedded LAN on board
10/100Mbps Fast Ethernet LAN on board
Supports IEEE 802.3 and 802.3u standards
Fully compliant ANSI X3.263 TP-PMD physical sub-layer
Audio
AC97 Codec on board to provide software audio solution
6CH DAC, applicable for leading motherboard chipsets.
Extensive jack-detection capability
Precise and advanced impedance sensing
Support 2 stereo microphones recording and playback
Two Ultra DMA IDE Ports
Supports two IDE ports up to 4 ATAPI devices
Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 133MBps with bus mastering
Bus Architecture
One CNR (Communication Network Riser)
Two PCI 2.2 32-bit Master PCI Bus slots
I/O Interface
PS/2 Mini-DIN mouse & keyboard ports
Six USB ports (four backpanel ports, onboard USB headers providing two extra ports)
One 25-pin female printer port
One serial port
One VGA port
Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK
Form Factor
Four layers, 23.0 cm x 17.0 cm
Flex ATX form factor
| Rem Tipi | : | DDR1 |
| İşlemci Soket Tipi | : | ÖZEL |
| Ekran Kartı Tipi | : | ONBOARD |
| Isa Slot | : | YOK |
