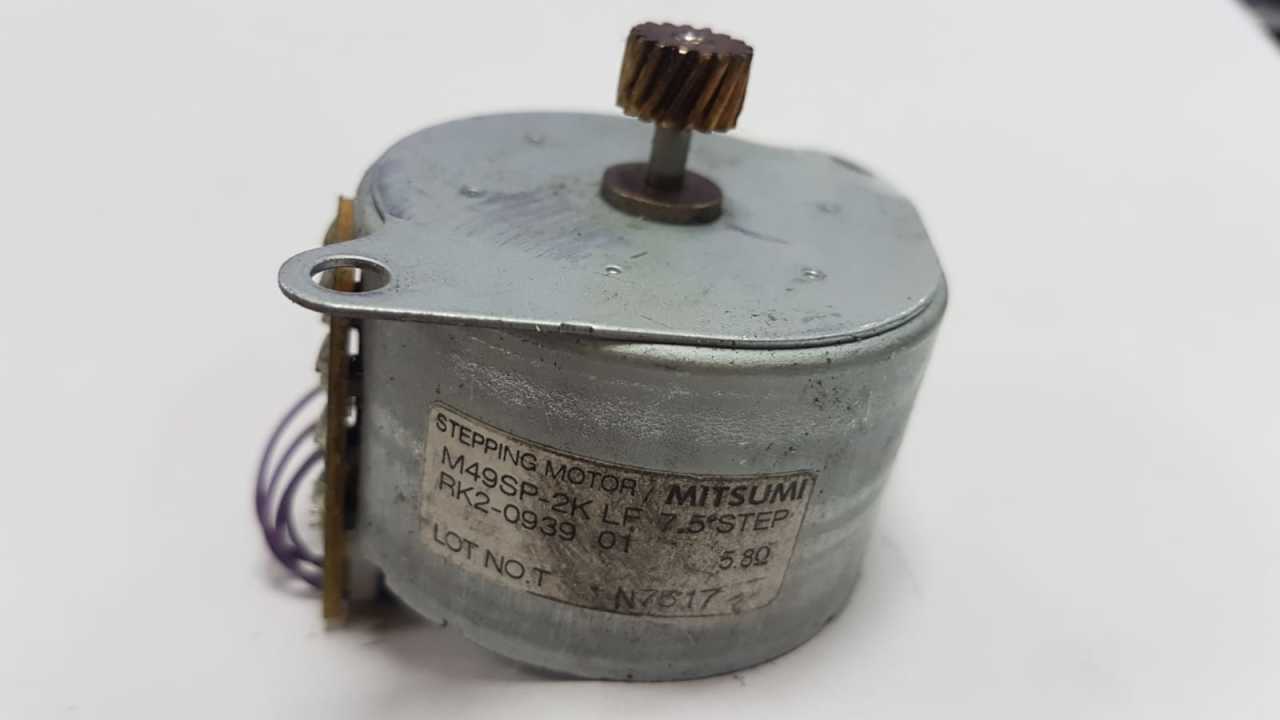

M49SP-2K Stepping Motors (Ø49)
[SPECIFICATIONS]
Item
49SP-2K
Rated Voltage
DC 24V
Working Voltage
DC 21.6~26.4V
Rated Current/Phase
1A(PEAK)
Coil DC Resistance
5.8Ω/phase±10%
Step Angle
7.5º/step
Drive Method
Constant Current
Excitation Method
2-2 Phase excitation(Bipolar driving)
Insulation Class
Class E insulation
Holding Torque
143mN·m
Pull-out Torque
106mN·m / 1,000pps
Pull-in Torque
124mN·m / 200pps
Max. Pull-out Pulse Rate
1,900pps
Max. Pull-in Pulse Rate
370pps
[SPECIFICATIONS]
| Item | 49SP-2K |
|---|---|
| Rated Voltage | DC 24V |
| Working Voltage | DC 21.6~26.4V |
| Rated Current/Phase | 1A(PEAK) |
| Coil DC Resistance | 5.8Ω/phase±10% |
| Step Angle | 7.5º/step |
| Drive Method | Constant Current |
| Excitation Method | 2-2 Phase excitation(Bipolar driving) |
| Insulation Class | Class E insulation |
| Holding Torque | 143mN·m |
| Pull-out Torque | 106mN·m / 1,000pps |
| Pull-in Torque | 124mN·m / 200pps |
| Max. Pull-out Pulse Rate | 1,900pps |
| Max. Pull-in Pulse Rate | 370pps |
