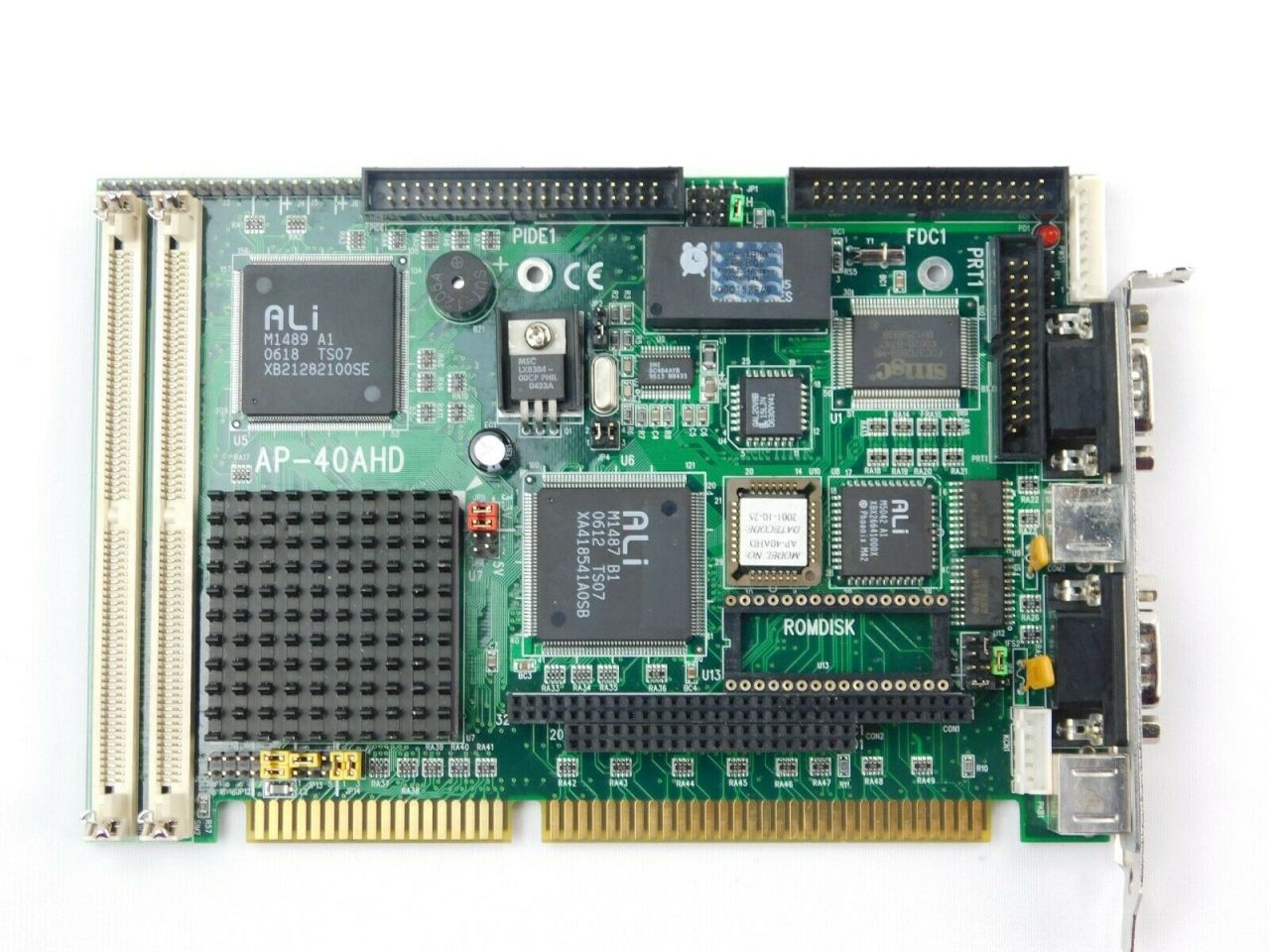

● Support Intel , AMD 486 & 5x86 series CPU
● 2 x RS-232 serial port
● 2 x SIMM, 1 x IDE, 1 x PC/104
● Socket for DiskOnChip
● Watchdog Timer
● CPU: Intel 80486 series , AMD 80486 series
● Chipset: ALI M1489/M1487 and SMC 37C669 I/O chipset ali
● BIOS: 128KB Award license BIOS
● Cache Memory:128KB~512KB L2 cache (default 256 KB)
● System Memory: 2 x 72-pin SIMM sockets , support up to 128MB for FPM/EDO DRAM
● Flash Memory Disk: Reserved socket for DiskOnChip from M-System , support up to 144 MB flash memory disk
● IDE Drive Interface: 1 PCI IDE port , support up to 2 IDE devices
● Floppy Drive Interface: 1 FDD port , support up to 2 floppy devices
● Serial Port: 2 x 16550 FIFO RS-232 serial ports
● Parallel Port: 1 Multi-mode parallel port ( SPP/EPP/ECP )
● IR Interface: Supports one IrDA header
● Keyboard Connector: On-board 5-pin header and 6-pin Mini-Din PS/2 keyboard connector
● Mouse Connector: On-board 6-pin Mini-Din PS/2 mouse connector
● RTC: Dallas RTC module or compatible
● Expansion Bus: Built-in PC/104 expansion bus
● DMA: 8 DMA channels
● Interrupts: 16 levels of hardware interrupts
● Watchdog Timer: 8 level time-out intervals
(0.5 / 1 / 2 / 4 / 8 / 16 / 32 / 64 sec.)
● Operating Temperature: 0¡C ~ 60¡C
● Humidity: 5% ~ 95%, non-condense
● Dimensions: 185 x 122 mm ( 7 1/4" x 4 5/6" inches )
Features:
Support Intel , AMD 486 & 5x86 series CPU
2 x RS-232 serial port
2 x SIMM, 1 x IDE, 1 x PC/104
Socket for DiskOnChip
Watchdog Timer
