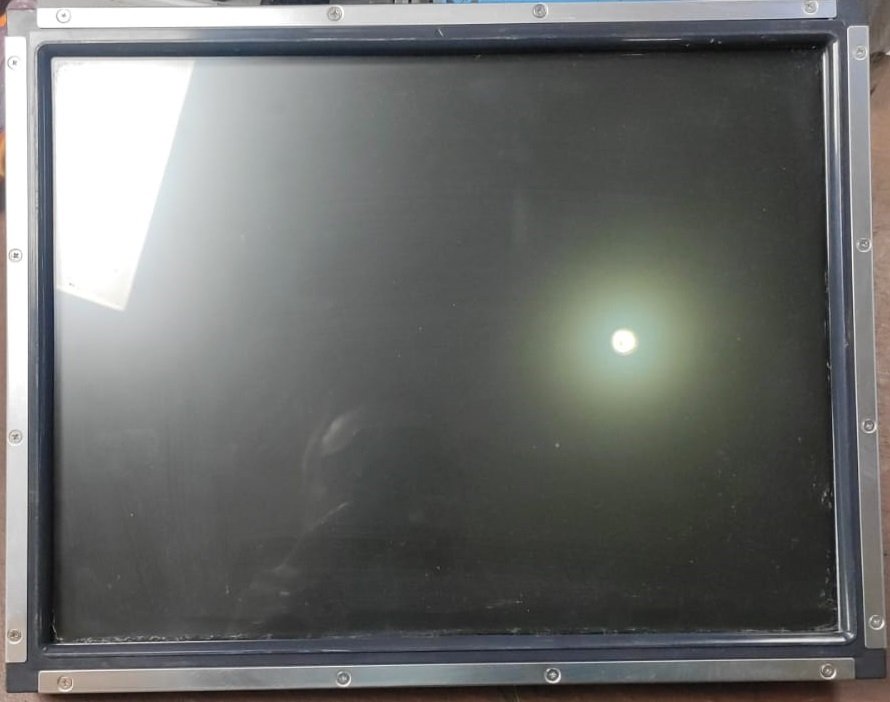

Elo TouchSystems 1537L 15” Open-Frame Touchscreen ET1537L-8CWA-1-NPB-G Dokunmatik LCD Monitör

Elo TouchSystems 1537L 15” Open-Frame Touchscreen  ET1537L-8CWA-1-NPB-G

Specifications

• ---

  Part Number(s)

  IntelliTouch (Worldwide) - E512043
  AccuTouch (Worldwide) - E701210
  SecureTouch (Worldwide) - E731919
  PCAP (Worldwide) - E001122

  Enclosure Color

  Black

  Touch Technology & Capacity

  5-Wire Resistive (AccuTouch®) - Single-Touch
  SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
  PCAP (TouchPro® Projected Capacitive) - 10 Touch
  SAW (SecureTouch® Surface Acoustic Wave) - Single Touch

  Diagonal Size

  15'' diagonal, Active matrix TFT LCD (LED)

  On Screen Display

  Accessible through switches on the unit’s tethered OSD Control box.

  Controls: Menu, Up, Down, Select, Power

  Settings: Brightness, Contrast, Clock, Phase, H-Position, V-Position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information

  Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,

  Lockouts: OSD, Power

  Aspect Ratio

  4:3

  Active Area (mm)

  11.97" x 8.98"/ 304.1mm x 228.1mm

  Resolution

  1024 x 768 at 60 Hz

  Other Supported Resolutions

  1024 x 768 at 60, 65 (Sun), 70 or 75 Hz
  832 x 624 at 75 Hz (Mac)
  800 x 600 at 56, 60, 72 or 75 Hz
  720 x 400 at 70 Hz
  720 x 350 at 70 Hz
  640 x 480 at 60, 66 (Mac), 72 or 75 Hz
  512 x 256 at 60 Hz
  512 x 247 at 60 Hz

  Viewing Angle

  Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total

  Number of Colors

  16.2 million

  Brightness (typical)

  LCD panel: 250 nits
  IntelliTouch: 225 nits
  AccuTouch: 200 nits
  SecureTouch: 225 nits
  PCAP: 225 nits

  Response Time-total (typical)

  16 msec

  Contrast Ratio

  700:1

  Input Video Format

  Analog VGA and digital DVI

  Input Video Signal Connector

  Analog VGA on Female DB-15 connector
  Female DVI-D, Dual-Link connector

  Input Video Frequency

  Horizontal: 31.5 - 60.2 KHz Vertical: 56.3 - 75 Hz

  Power Supply

  External DC - power brick (sold separately)

  Input power connector (Monitor)

  Coaxial power jack (2.0mm (+0.0 -0.1mm) 2.1mm pin outer diameter, 6.4mm (+/- 0.3mm) 5.5mm barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)

  Power connector (Power brick)

  Type: DC Barrel Plug
  Barrel outer diameter: 5.5mm (+/- 0.1mm)
  Pin inner diameter: 2.1mm (+/-0.1mm)
  Barrel length: 9.5mm (+/- 0.5mm)

  Input Voltage

  +12VDC +/- 5%

  Power Consumption (Typical)

  Monitor + Adapter at 230V/50Hz:
  ON: 12 W
  SLEEP: 2 W
  OFF: 1 W

  Dimensions

  See below

  Monitor Dimensions

  Bezel: 13.24" x 10.41" x 1.66" / 336.4mm x 264.4mm x 42.1mm
  PCAP: 14.24" x 11.36" x 1.54" / 361.7mm x 288.6mm x 39mm
