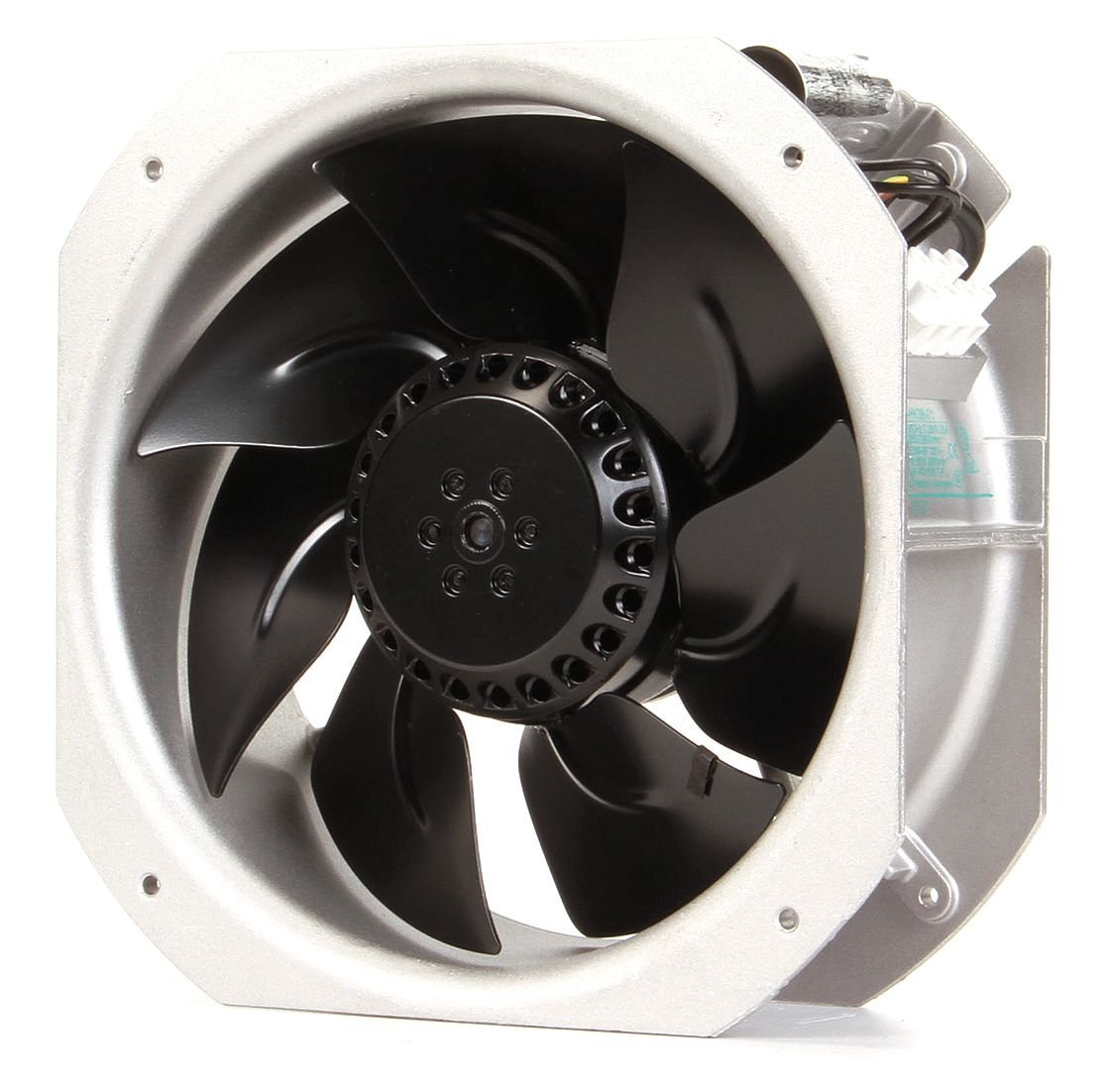

EBMPAPST W2E200-HK38-01 - Axial Fan, 230 V, AC, 225 mm, 80 mm, 518 cu.ft/min
Categories Fans, Thermal Management AC Fans
Manufacturer ebm-papst Inc.
Series W2E200
Part Status Active
Voltage - Rated 230VAC
Size / Dimension Square - 225mm L x 225mm H
Width 80.00mm
Air Flow 606.0 CFM (16.97m³/min)
Static Pressure 0.381 in H2O (95.0 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features -
Noise 61.0 dB(A)
Power (Watts) 80.0W
RPM 2800 RPM
Termination Terminal Block
Ingress Protection -
Operating Temperature -40 ~ 176°F (-40 ~ 80°C)
Approvals -
Weight 4.7 lbs (2.1kg)
Current Rating 0.350A
Voltage Range -
Material - Frame Aluminum
Material - Blade Steel
Lifetime @ Temp. -
