Adetli stok mevcuttur.
-
Form Factor: 3.5" Fanless Embeded miniboard
-
CPU: Embedded VIA Eden 800MHz CPU
-
Memory: Onboard 1 x 184-pin DDR266/333/400 SDRAM up to 1 GB
-
Chipset : VIA CN400 & VT8237
-
Real Time Clock : Chipset Integrated RTC with onboard lithium battery
-
Watchdog Timer : Winbond W83697HF with system generates 256 levels reset.
-
Power Management : ACPI 1.0 compliant, supports power saving mode with ATX PSU
-
PCI Enhanced IDE: One ATA133 IDE channel supports up to 2 ATAPI devices.Onboard 1 x 44-pin IDE connectors
-
VGA Interface: VIA CN400 integrates S3 Graphics UniChrome Pro IGP graphic core. MPEGII/MPEG-4 hardware accelerator integrates and 64 MB of video memory shared with system.
-
LCD Interface: 18/24-bit LVDS interface.
-
LAN Interface: 1 x VIA VT6103 10/100Mbps PHY.
-
Audio Interface: Realtek ALC201A AC97 Codec.
-
Solid State Disk: IDE1 supports DiskOnModule with + 5V power supply.1 x CF socket.
-
Internal I/O Ports: 1x IrDA port, 1x Parallel and 2 x USB ports.1 x Serial Port, 1x silm FDD ,1 x CDIN,1 x 10-pin audio port.2 x fan connectors.1 x 4-pin 12V power input.1 x 4-pin 5V/12V power output.
-

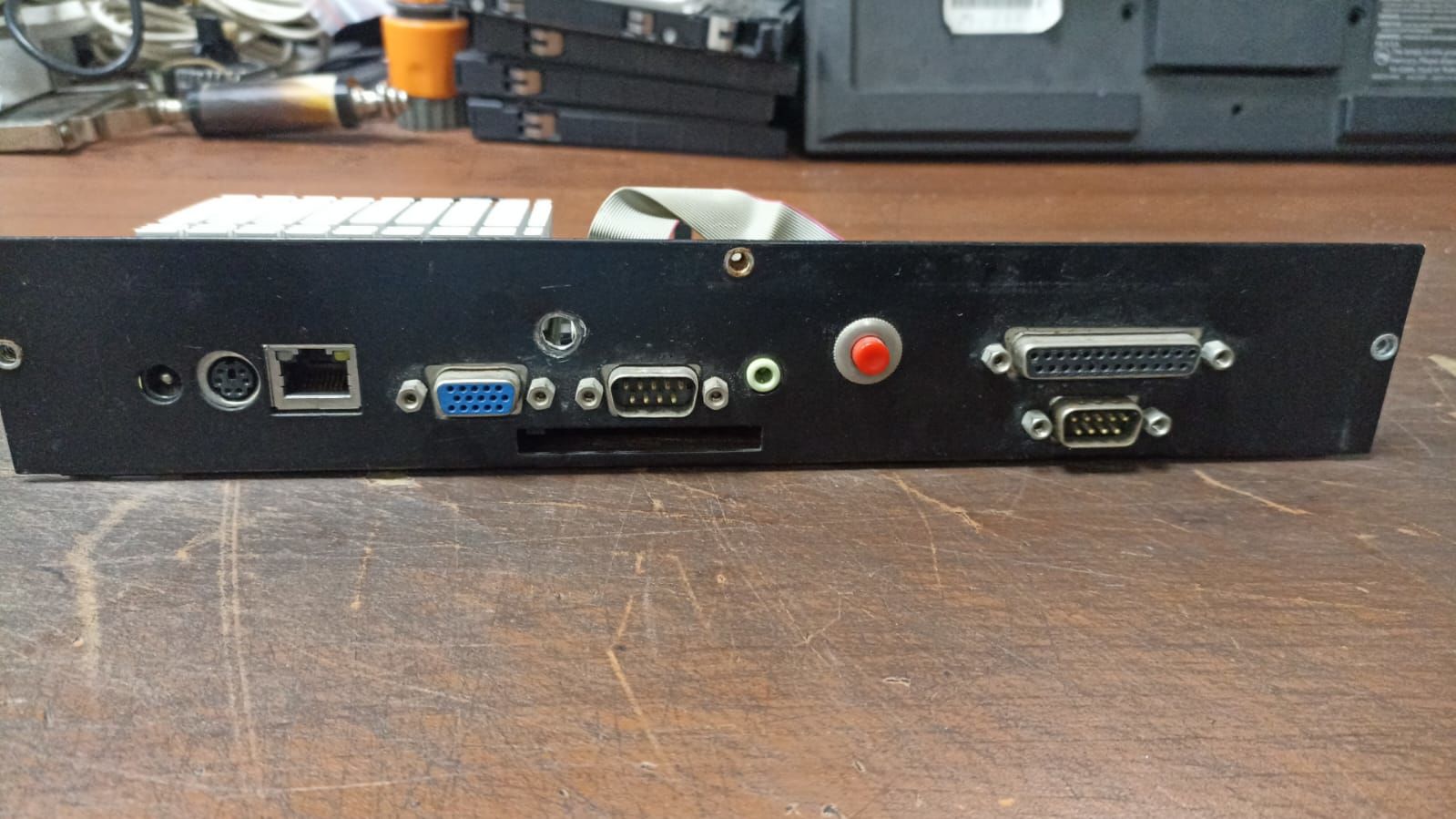

External I/O Ports: 1 x RJ45 LAN ports, 1x DB15 VGA port and 1x PS/2 port, 1x RS232 port, 1 x Phone jack. 1x DC Jack
-
Extended Interface: 1 x Mini-PCI slot. Extended PCI interface through optional riser card up to 2 devices.
-
Power Requirement : DC 12V input
-
Board Dimension : 146 mm x 101 mm (L xW)
pdf : http://www.commell.com.tw/Download/Datasheet/LE-364_Datasheet.pdf
