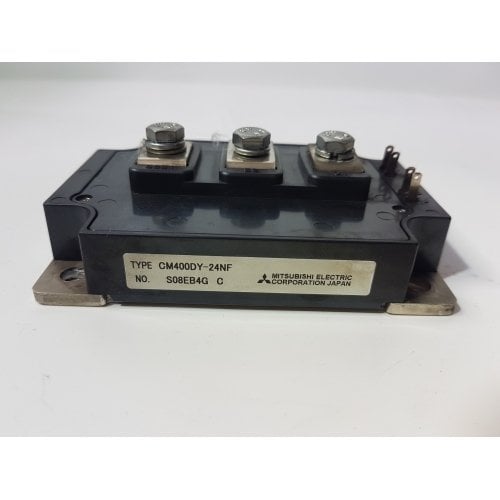

CM400DY-24NF Mitsubishi IGBT Power Transistor Module
Pdf : https://www.mitsubishielectric-mesh.com/products/pdf/CM400DY-24NF_n.pdf
ManufacturerPowerex Inc.
SeriesIGBTMOD™
Part StatusDiscontinued at Digi-Key
IGBT Type-
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200V
Current - Collector (Ic) (Max)400A
Power - Max1470W
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 400A
Current - Collector Cutoff (Max)1mA
Input Capacitance (Cies) @ Vce94nF @ 10V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
