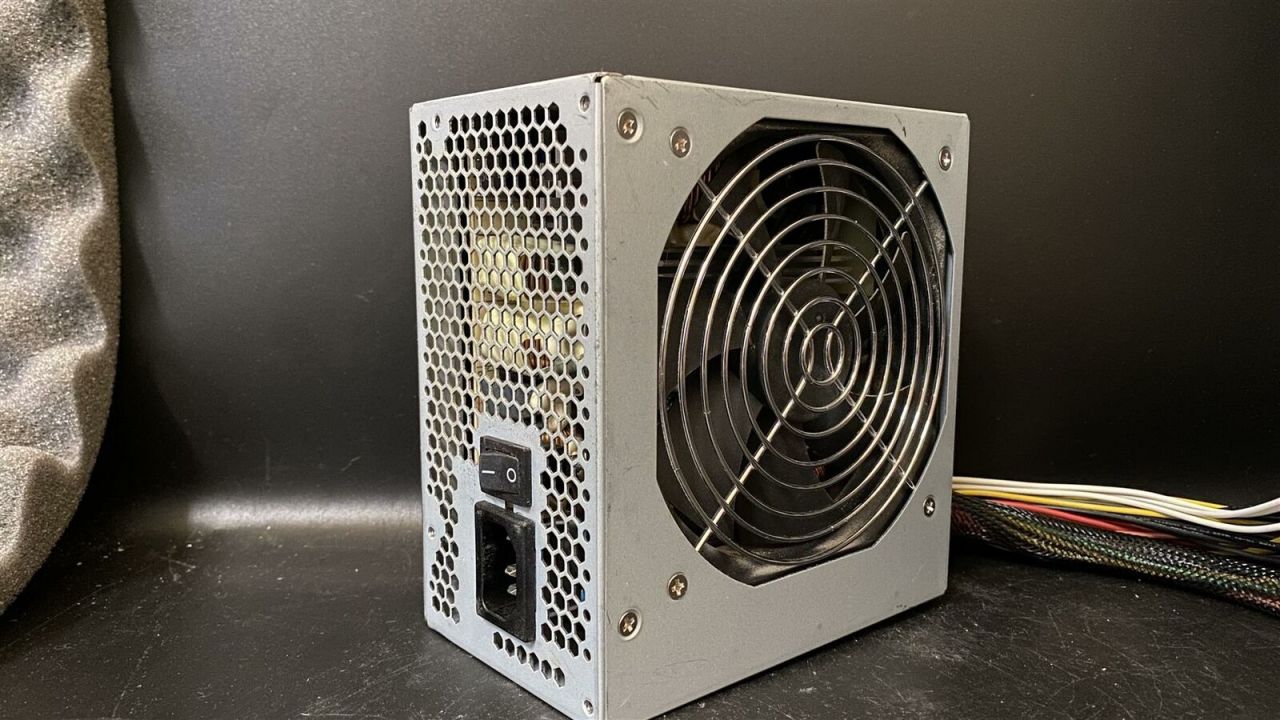

Chieftec GPS-550AB A 550W POWER SUPPLY
889,23 TL
Chieftec GPS-550AB A 550W POWER SUPPLY
General characteristics
Power: 550 watts;
Standard: ATX12V 2.0 / EPS12V;
PFC: active;
Cooling system: 1 fan (120 mm);
Connectors
Type of connector for the motherboard: 20+4 pin;
Number of connectors 4-pin CPU: 1;
Number of connectors 8-pin CPU: 1;
Number of connectors 6-pin PCI-E: 2;
Number of connectors 15-pin SATA: 4;
Number of connectors 4-pin IDE: 6;
Number of connectors 4-pin Floppy: 1;
Current strength
Current for the +3.3 V: 28 A;
Current on The +5 V: 26 A;
The current on the +12V line 1: 18 A;
The current on the +12V line 2: 18 A;
The current on the +12V line 3: 18 A;
Current line -12: 0.2 A;
Current on The +5 V Standby: 2.5 A;
Additional information
Noise level: 27 DBA;
Color: grey;
Overvoltage protection: Yes;
Overload protection: Yes;
Short circuit protection: Yes;
Dimensions (HxWxD): 87x150x140 mm;
Power: 550 watts;
Standard: ATX12V 2.0 / EPS12V;
PFC: active;
Cooling system: 1 fan (120 mm);
Connectors
Type of connector for the motherboard: 20+4 pin;
Number of connectors 4-pin CPU: 1;
Number of connectors 8-pin CPU: 1;
Number of connectors 6-pin PCI-E: 2;
Number of connectors 15-pin SATA: 4;
Number of connectors 4-pin IDE: 6;
Number of connectors 4-pin Floppy: 1;
Current strength
Current for the +3.3 V: 28 A;
Current on The +5 V: 26 A;
The current on the +12V line 1: 18 A;
The current on the +12V line 2: 18 A;
The current on the +12V line 3: 18 A;
Current line -12: 0.2 A;
Current on The +5 V Standby: 2.5 A;
Additional information
Noise level: 27 DBA;
Color: grey;
Overvoltage protection: Yes;
Overload protection: Yes;
Short circuit protection: Yes;
Dimensions (HxWxD): 87x150x140 mm;
