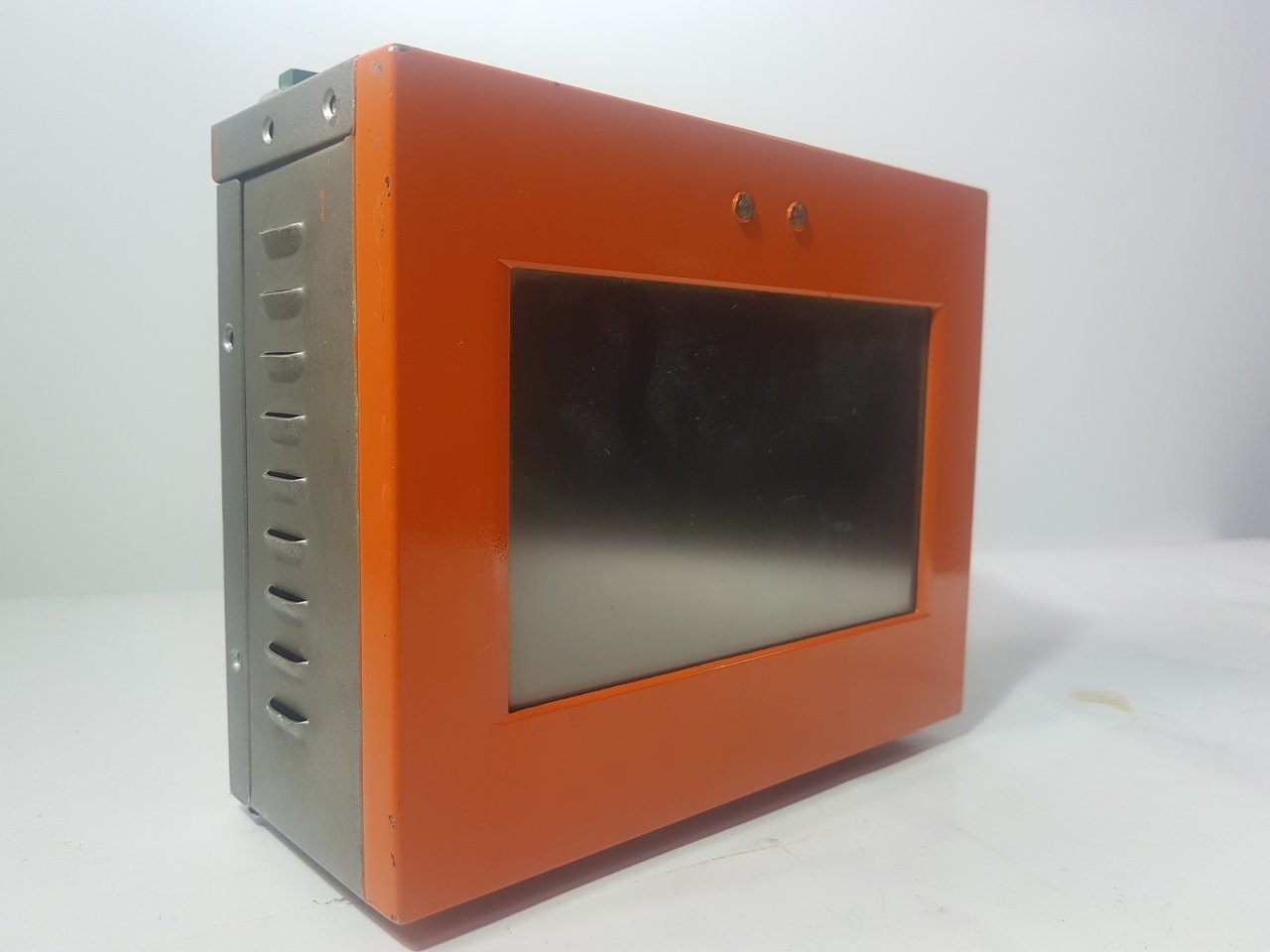

Belbim VCP7 Dokunmatik Endüstriyel PC
Belbim VCP7 Dokunmatik Endüstriyel PC
Cpu : Celeron M 1,0GHZ
Ram : 256MB
Hdd : 2 GB CF KART
7" Dokunmatik LCD
Specification
CPU
Socket 479 IntelPentiumM, CeleronM 400MHz FSB
On-board CeleronM 600MHz 512K cache/1.0GHz zero cache
System Chipset
Intel852GM + ICH4
BIOS
AMI BIOS
System Memory
1 x 200-pin signal channel DDR 266MHz SO-DIMM up to1GB
Ethernet
Dual Intel82551ER Ethernet chipsets
Dual Intel82541PI GbE chipsets
I/O Interface
5 x RS-232
1 x RS-232/422/485
6 x USB 2.0
1 x IDE
1 x PS/2 for KB/MS
Expansions
PC/104-Plus (NANO-4386A only)
PCI-104 (NANO-4386A2 only)
Digital I/O
8-bit digital I/O, 4-bit input/ 4-bit output
IrDA
1 x IrDA by pin header
Super I/O
Winbond W83627UHG
Display Interface
VGA intgrated in Intel852GM
18-bit dual channel LVDS
DVI (NANO-4386A2 only)
Audio
Realtek ALC655 with AC'97 codec
SSD
CF Type II
Watchdog Timer
Software programmable supports 1 ~255 sec. System reset
Power Supply
AT/ATX power
Power Consumption
12V 2.7A, 5VSB0.22A
(Intel Celeron M 1.4GHz CPU with 512MB DDR 333MHz)
Temperature
Operation: 0? C ~ 60'C (32 ~ 140'F)
Humidity
Operation: 5% ~95% non-condensing
Dimensions
115mm x 165mm
Weight
GW: 800g / NW: 233g
