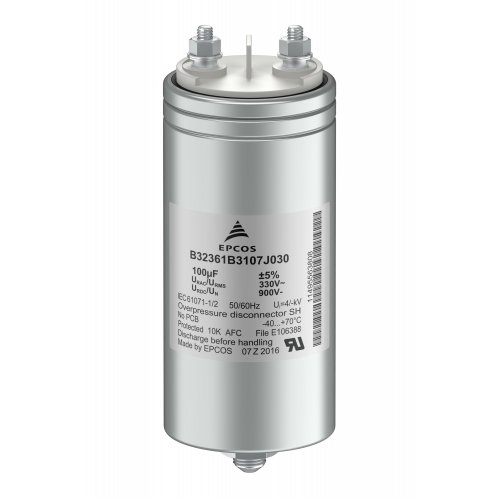

B32361B3107J030 | EPCOS 100μF Polypropylene Capacitor
210,00 TL
B32361B3107J030 | EPCOS 100μF Polypropylene Capacitor
AC Film Capacitor, Power Electronic AC MKP, 100 µF, 330 VAC, PP (Polypropylene), ± 5%
B32361B3107J030 | EPCOS 100μF Polypropylene Capacitor
Capacitance value range from 10µF to 200µF
Available voltage ratings are 350VAC, 460VAC and 680VAC
RMS voltage of 250VAC, 330VAC and 480VAC
Current rating ranges from 10A to 25A
Capacitor size varies from 63.5mm x 70mm to 63.5mm x 142mm
Tolerance of ±5%
Operating temperature range from -40˚C to 70˚C
Stud size is M6, M10 and M12
UL E106388 approved
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
