Advantech PPC-6170-RI3AE i3 17'' Dokunmatik Endüstriyel Panel PC PLC

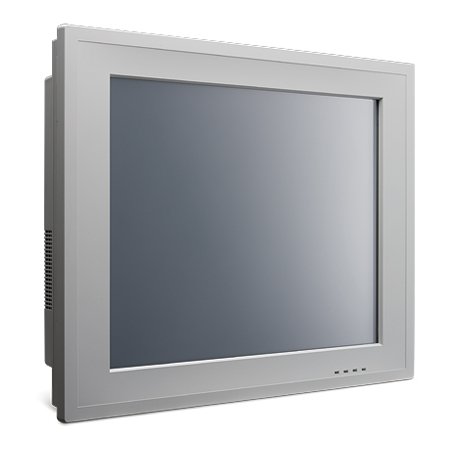

Advantech PPC-6170-RI3AE i3 17" Panel PC
işlemci : i3-3120me 2,40ghz
rem : 4gb
hdd: 160gb
Pdf linki : http://www.noyabilgisayar.com/wp-content/uploads/2013/09/Advantech_PPC-6170_DS.pdf
The PPC-6170 is a Panel PC with an Intel Core i3/i5 or Celeron processor, and a 17" color TFT LCD panel. It features extremely high computing power, modular design, excellent connectivity, and can support virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Two expansion slots, dual hard drives supporting Intel RAID, and one isolated RS-232/422/485 port make the PPC-6170 highly reliable, and provide a great solution for a wide range of applications.
17" Panel PC with Intel® Core™ i3 / i5 / Celeron® Processor
- Intel® Core™ i3, i5, Celeron 847E and 1020E + Intel QM77 PCH
- 1X DDR3/DDR3L SODIMM support to 8 GB
- Multiple expansion slots including one PCIe x4, one PCI + one PCIe x1, two PCI (optional) and two PCIe x1 (optional)
- Optional second HDD, supports Intel RAID
- One isolated RS-232/422/485 port; (selectable in by BIOS)
- One GPIO/RS-232 (8 channels, TTL level); (by swapping pin header)
- Dual GbE, supports Intel AMT8.0
- Supports iManager, SUSIAccess and Embedded Software APIs
| Display | Viewing Angle | 80°(left), 80°(right), 80°(up), 80°(down) |
| Power Supply | Power Consumption | With Core i5-3610ME is 65W, With Core i3-3120ME is 55W, With Celeron 847E is 53W (Burn-in test 7.0 in Windows 7 32-bit) |
| Input Voltage | 100 - 240VAC, 50/60Hz, 4-2A | |
| Output Rating | 150 W (max.) | |
| LCD Display | Luminance (cd/m2) | 350 |
| Contrast Ratio | 1000:1 | |
| Max. Resolution | 1280x1024 | |
| Max. Colors | 262 K | |
| Display Type | 17" TFT LCD (LED Backlight) | |
| Pixel Pitch (mm) | 0.264 x 0.264 | |
| Backlight Life | 50, 000 hrs (typical) | |
| Processor System | L3 Cache | 3M |
| Memory | 1 x 204-pin SODIMM, DDR3 (1600 MHz) / DDRL (1333 MHz), supports up to 8 GB | |
| Frequency | 2.4 GHz | |
| Network (LAN) | 2 x Gigabit Gigabit Ethernet connectors, Intel AMT supported (GbE1- Intel 82579LM, GbE2 – Intel 82583V) | |
| Intel | Core i3-3120ME | |
| Storage 1 | 1 x 2.5" SATA bay | |
| Storage 2 | Either one - Second 2.5" SATA bay (Intel RAID supported, optional) - Slim type 8X or above DVD +/- RW (optional) | |
| Additional Expansion | 1 x Full-size mini PCIe (Supports mSATA), 1 x half-size mini PCIe | |
| FAN | Two 12V 60 x 60 x 13 (mm) with smart fan control, (70,000 hours continuous test @ 40° C) | |
| Chipset | Intel QM77 | |
| OS Support | OS Support | Win XPE / Win XP Pro / WES7 32 & 64 bit / Windows 7 32 & 64 bit |
| Physical Characteristics | Dimensions | 442.0 x 362.0 x 113.5 (mm) (17.4" x 14.25" x 4.47") |
| Weight | 7.5Kg (16.52lb) |
