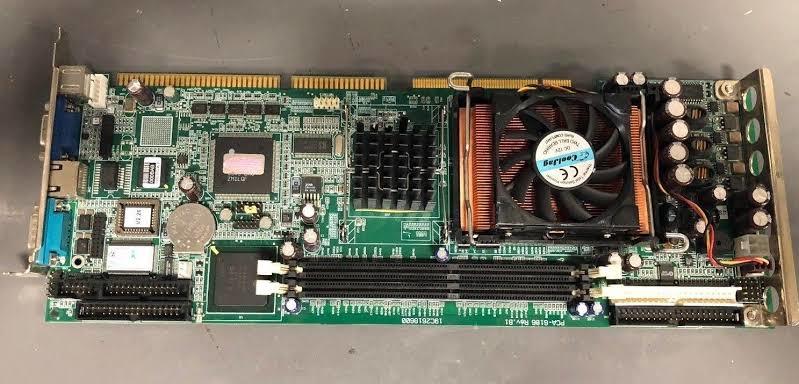

Advantech PCA-6186 REV.B1 Board
https://ecauk.com/files/2011/08/Advantech-PCA-6186-B-Datasheet.pdf
Specifications
Processor System
CPU Intel Pentium 4 Intel Celeron D Intel Celeron
Max. Speed 3.06 GHz 3.06 GHz 2.8 GHz
L2 Cache 256/512 KB 256 KB 128 KB
Chipset Intel 845 GV + ICH4
BIOS Award 4 Mbit FWH
Front Side Bus 400/533 MHz
Bus PCI 32-bit/33 MHz
ISA HISA (ISA high drive)
Memory
Technology DDR 200/266/333 SDRAM
Max. Capacity 2 GB
Socket 184-pin DIMM x 2
Graphic Controller Chipset integrated VGA controller
VRAM Dynamically shared system memory 8 ~ 64 MB
Ethernet
Interface 10/100Base-T; 10/100/1000Base-T (optional)
Controller LAN 1: Intel 82562 (FE); Intel 82540 (Gigabit)
LAN 2: Intel 82551 (FE); Intel 82540 (Gigabit)
Connector RJ-45 x 2
EIDE Mode ATA 100/66/33
Channel 2 (Max. 4 devices)
I/O Interface
USB Max. 6 (USB 2.0 compliant), 4 ports onboard for E2, G2 versions
Serial 2 (RS-232)
Parallel 1 (SPP/EPP/ECP)
FDD 1
PS/2 1 (for LV, VE, VG, G2 versions), 2 (for E2 version)
Watchdog Timer Output Interrupt, system reset
Interval Programmable, 1 ~ 255 sec.
Miscellaneous Audio Output AC-97 audio interface (requires an audio extension module P/N: PCA-AUDIO-00A1)
Power Requirement
Typical Pentium 4 2.8 GHz 533 MHz, DDR 333 1 GB x 2
+5 V -5 V +12 V -12 V
3.23 A 0.1 A 4.64 A 0.2 A
Environment Operating Non-Operating
Temperature 0 ~ 60 °C (32 ~ 140 °F), depends on CPU’s speed -20 ~ 70 °C (-4 ~ 158 °F)
