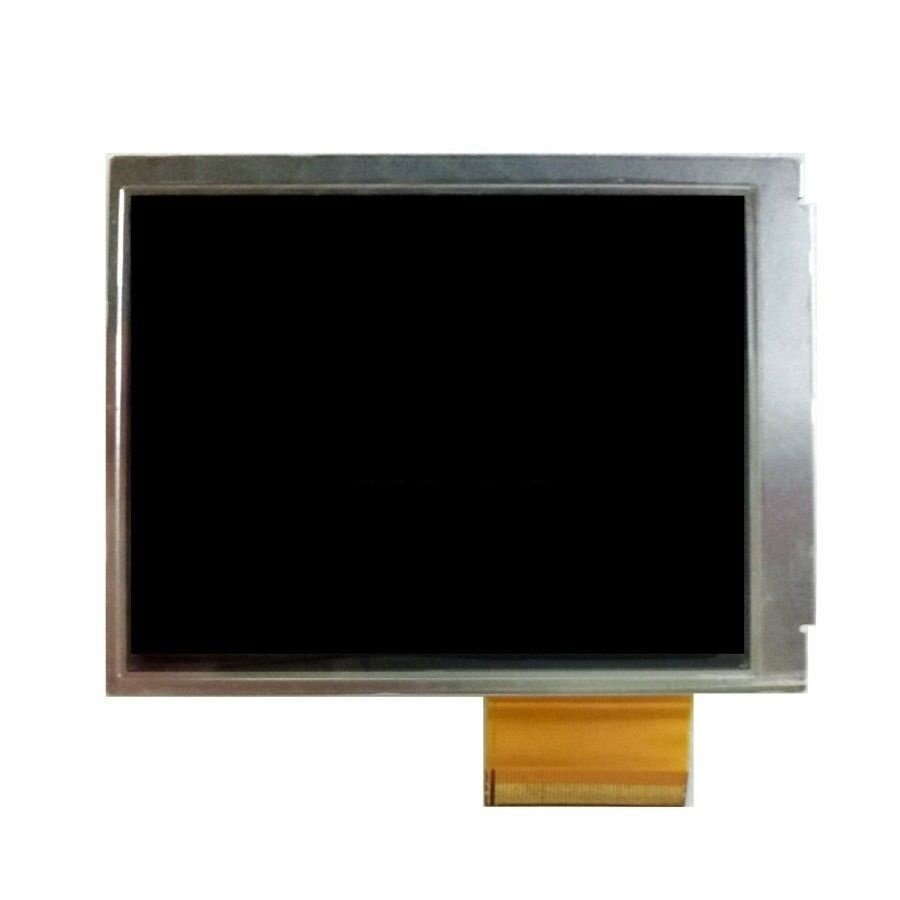

3.5 Origianl Sharp TFT LCD Display Screen LQ035Q7DH07 240x320
| Panel Brand | SHARP |
| Panel Model | LQ035Q7DH07 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 3.5 inch |
| Resolution | 240(RGB)×320 , QVGA |
| Display Mode | TN, Normally White, Transflective |
| Active Area | 53.64×71.52 mm |
| Outline | 65×86.2×3.4 mm |
| Surface | Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 80:1 (Typ.)(Transmissive)3:1 (Typ.)(Reflective) |
| Display Colors | 262K (6-bit) |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/40/50 (Typ.)(CR≥2)(L/R/U/D) |
| Lamp Type | 6S1PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| Input Voltage | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
| Application | PDA |
