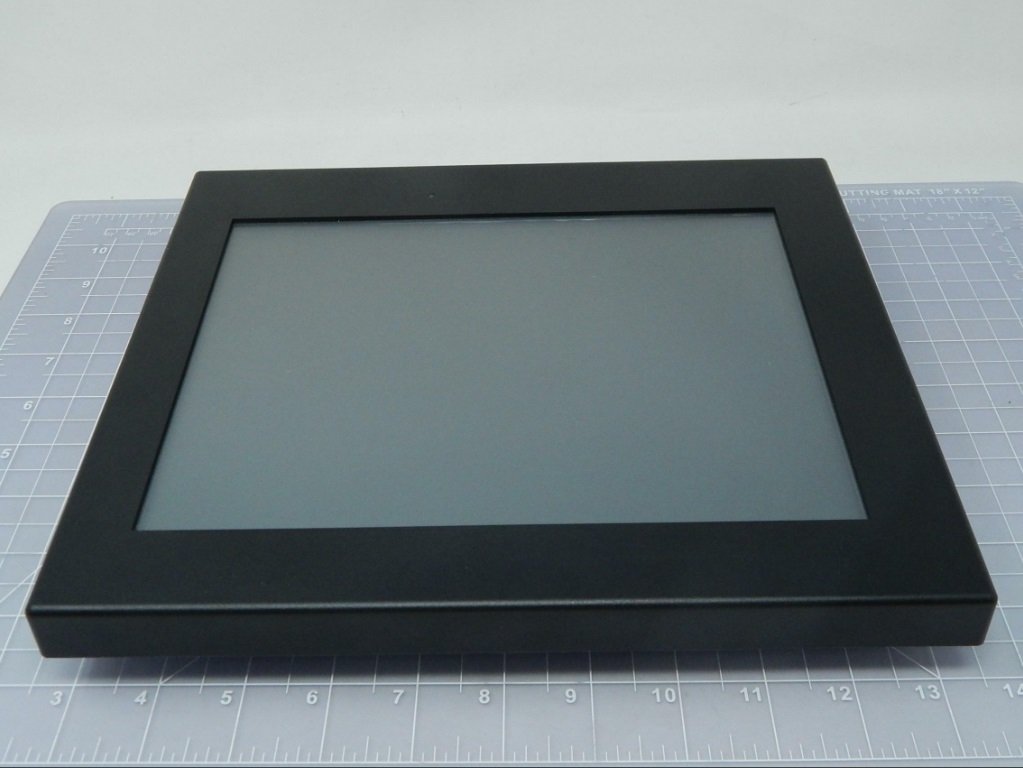

10.4'' GDS Dokunmatik 445-0719500 4450719500 NCR 66xx Ekran Operatör Paneli

10.4" GDS Dokunmatik 445-0719500 4450719500 NCR 66xx Ekran Operatör Paneli

G1000041

GOP SB

CC10263TBS/24R

009-0025942 Rev A.

090248081

Size : 10.4”

Active area : 211.2 x 158.4 mm

Pixel format : 800 x 600 x 3

Display mode: Normally white

Brightness: 400 cd/m2 typ. (without touch)

Contrast : 700:1 typ

Brightness uniformity : 75%

Video Input Signal: DVI-D

Video Connector : 24 way DVI female

Touch screen : Resistive 5 wire

Touch screen connector : USB B connector (Molex 67068)

Supported Video Input Signal Modes : 640 x 480 - 800 x 600 - 1024 x 768

Power Input : 24 Vdc; 0.6 A max

Power consumption : 24 W max

Power Connector : Molex connector (39-30-3035)

Approvals & Certifications : EN60950-1

UL60950-1

CSA C22.2 n. 60950-1

FCC CFR47 P.15

EN61000-6-3:2001 (Emissions)

EN61000-4-2 (Electrostatic Discharge)

EN61000-4-3 (RFI Radiated Susceptibility)

EN61000-4-4 (Electrical Fast Transient)

EN61000-4-6 (RFI Conducted Susceptibility)

CE

Operating Temperature : 0 to +50° C

Storage Temperature : -10 to + 50° C

Backlight life : 50,000 hours typ
