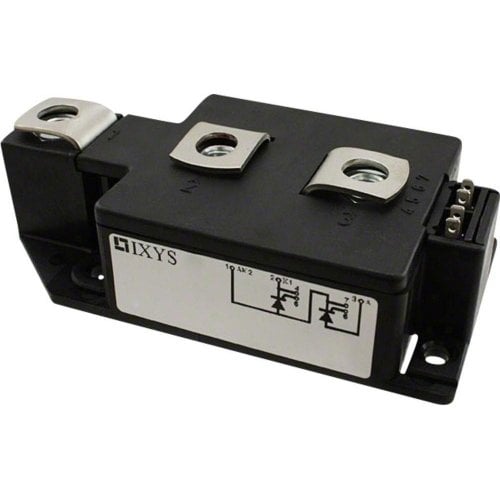

MCC 310-12İO1 320A 1200V TRİSTOR Modul
AttributeValue
Thyristor TypeSCR Module
Maximum Gate Trigger Voltage2V
Maximum Gate Trigger Current150mA
Maximum Holding Current150mA
Rated Average On-State Current320A
Repetitive Peak Reverse Voltage1200V
Surge Current Rating9.8kA
Mounting TypePanel Mount
Package TypeY2 DCB
Pin Count7
Peak On-State Voltage1.32V
Repetitive Peak Forward Blocking Voltage1200V
Repetitive Peak Off-State Current40mA
Dimensions116 x 60 x 30mm
Height30mm
Maximum Operating Temperature+140 °C
Length116mm
Minimum Operating Temperature-40 °C
Width60mm
